You select a product of
SUNLIGHT HARVESTING
for your very roof
and it FAILS YOU by
- Leakage
- Non performance
- Frequent replacement
" A Leading Manufacturer"
Why Choose Us ..?
IndiaMart / JustDial
Avg
1
/ 5⭐
Google Ratings
Avg
1
/ 5⭐
Components
1
+
Happy Clients
1
+
Year In Industries
1
+
Why Choose
XYZ Company
When
Manufacturer is here
click to connect
whom we have served so far....
Applications
Explore More
Essentials of Our Solutions
18 months ROI
Reduce
Electrical energy bills up to 60%.
10 years of performing life gives additional benefits up to 8.5 years.
No leakage
No rejection of
raw material & finished goods,
No Machine stops
No slippery floors
No replacement at every 3 to 5 years, Saving productive peoples’ time, energy and money.
Enhanced productivity through Sunlight by improving mind and body health of people working on floor. This can not be calculated in terms of money.
Must take a look at
| SUNLIGHT PIPE™ System and its SELECTION CRITERIA , Market Prices. | |||||
|---|---|---|---|---|---|
| Sr. | Model | Suitability | Opening area in roof through which sunrays pass through | LUX output at floor | Price in INR |
| 1 | 300D | Covers : Approx. 3.0mtr. dia on floor Suitable Roof height : 3.0 - 4.0 mtrs. Maximum distance between two lights 3.0 mtrs. | 0.37 sq.ft. | 250 - 300 | 7,600/- |
| 2 | 400D | Covers : Approx. 4.0mtr. dia on floor Suitable Roof height : 4.0 - 5.0 mtrs. Maximum distance between two lights 4.0 mtrs. | 1.01 sq.ft. | 250 - 300 | 9,500/- |
| 3 | 600D | Covers : Approx. 6.0mtr. dia. on floor Suitable Roof height 6.0 - 8.0 mtrs. Maximum distance between two lights 5.0 mtrs. | 1.74 sq.ft. | 250 - 300 | 15,800/- |
| 4 | 800D | Covers : Approx. 8.0mtr. dia on floor Suitable Roof height : 9 - 12 mtrs. Maximum distance between two lights 5.0 mtrs. | 3.84 sq.ft. | 250 - 300 | 19,000/- |
| NOTE: LUX output calculated at ambient,95000 LUX level | |||||
| NOTE : Standard Packet : 05 sets / Transportation : Extra / Packaging : Extra / GST : Extra Consumables of installation Butyl Tapes / plastic buttons /screws / silicon : Extra | |||||
Customization
Customisation in size , shape and sheet type is possible for minimum 100 pcs MOQs.
Always customised as per clients’ roof sheet cross section for best performance and leakage prevention.
Got Questions?

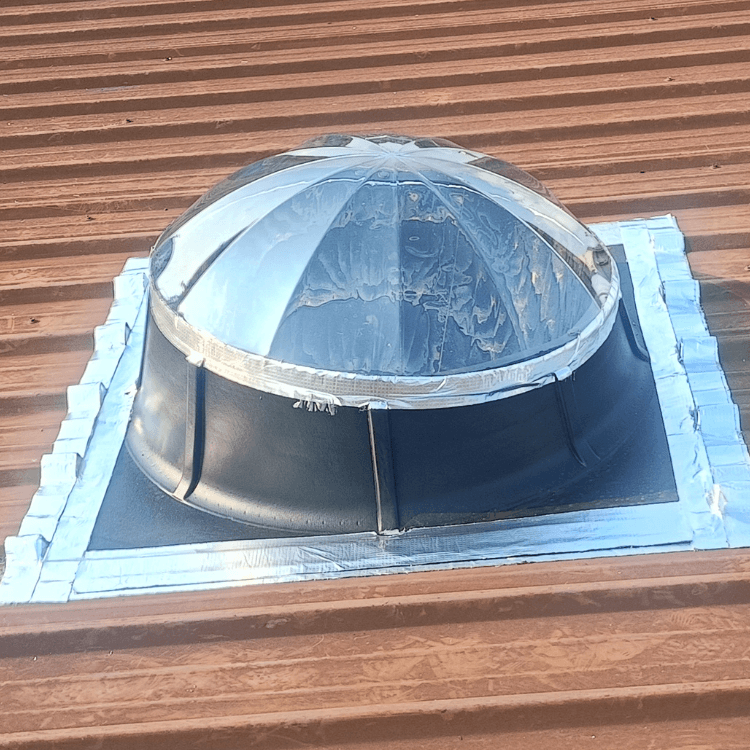

What is a SUNLIGHT PIPE™ and how does it work?
SUNLIGHT PIPE™ is a well-researched, designed and produced product consisting of many components. Sometimes this product is termed as DAYLIGHT HARVESTING SYSTEM or SUNLIGHT TUNNEL or DAYLIGHT TUBE or SUN TUNNEL or SOLAR TUBULAR LIGHT.

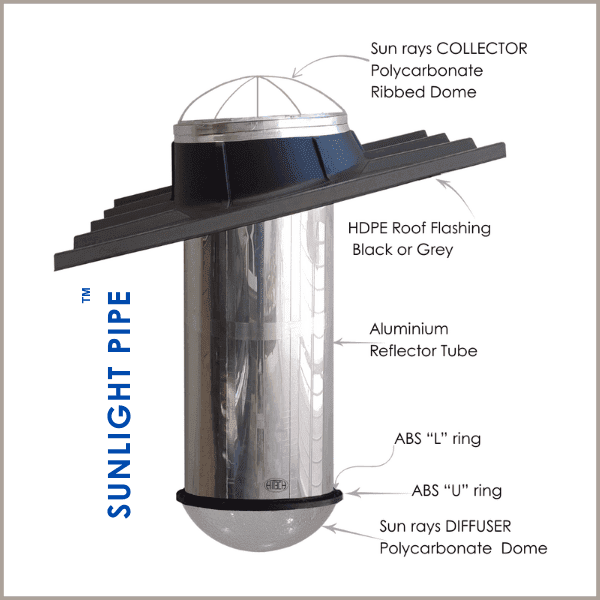

Our Trade Mark product SUNLIGHT PIPE™ is comprising of specific design and materials as listed below.
- a) Sunrays collecting ribbed both side 50 micron UV coated Polycarbonate Dome
- b) HDPE Roof flashing, acting as adapter between roof and polycarbonate dome
- c) Aluminum reflector tube
- d) ABS “L” & “U” rings to install diffuser dome
- e) Small diamond shape surfaced polycarbonate diffuser dome.

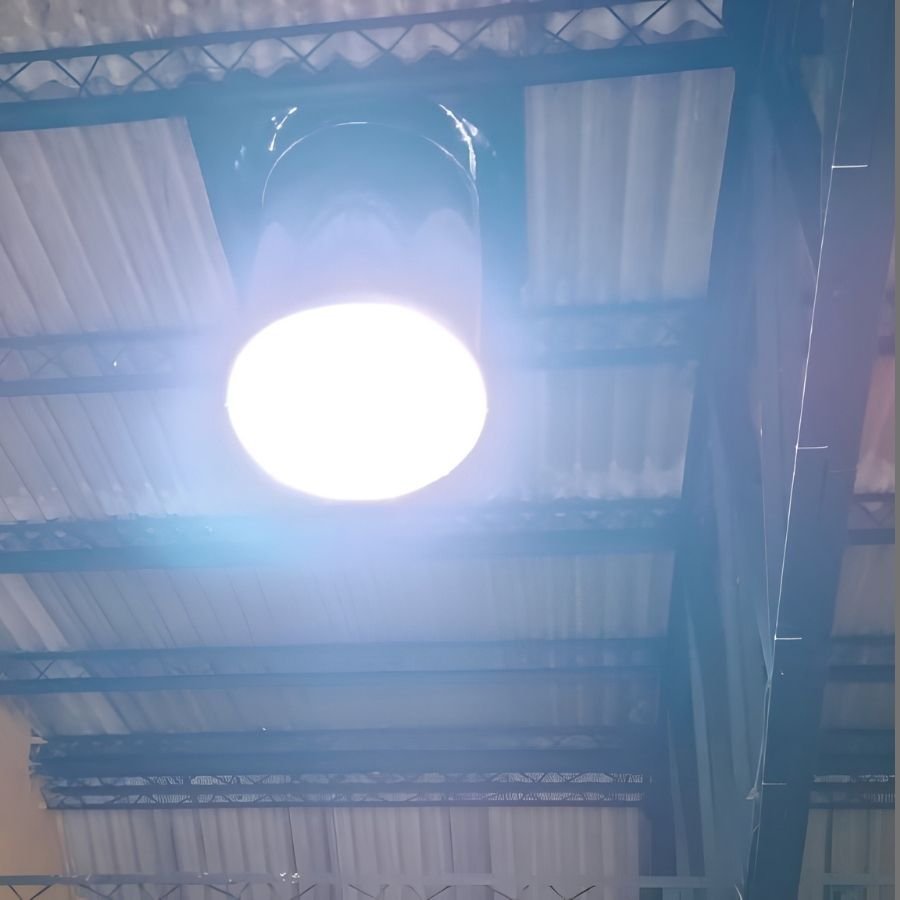

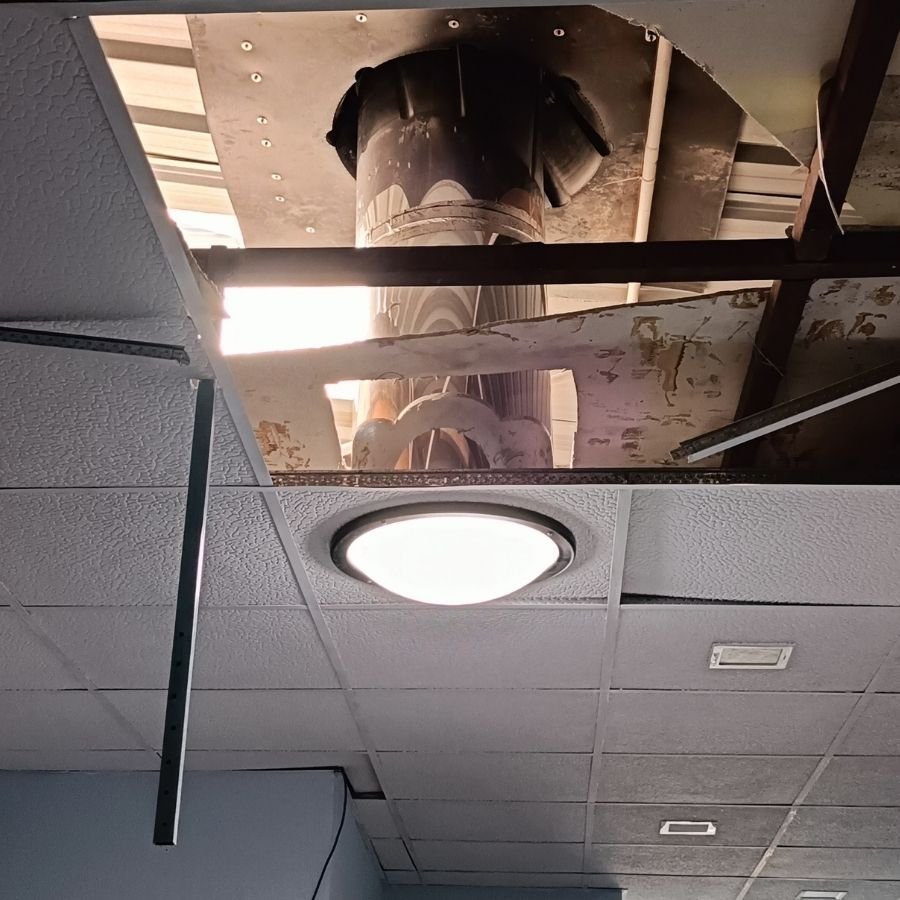

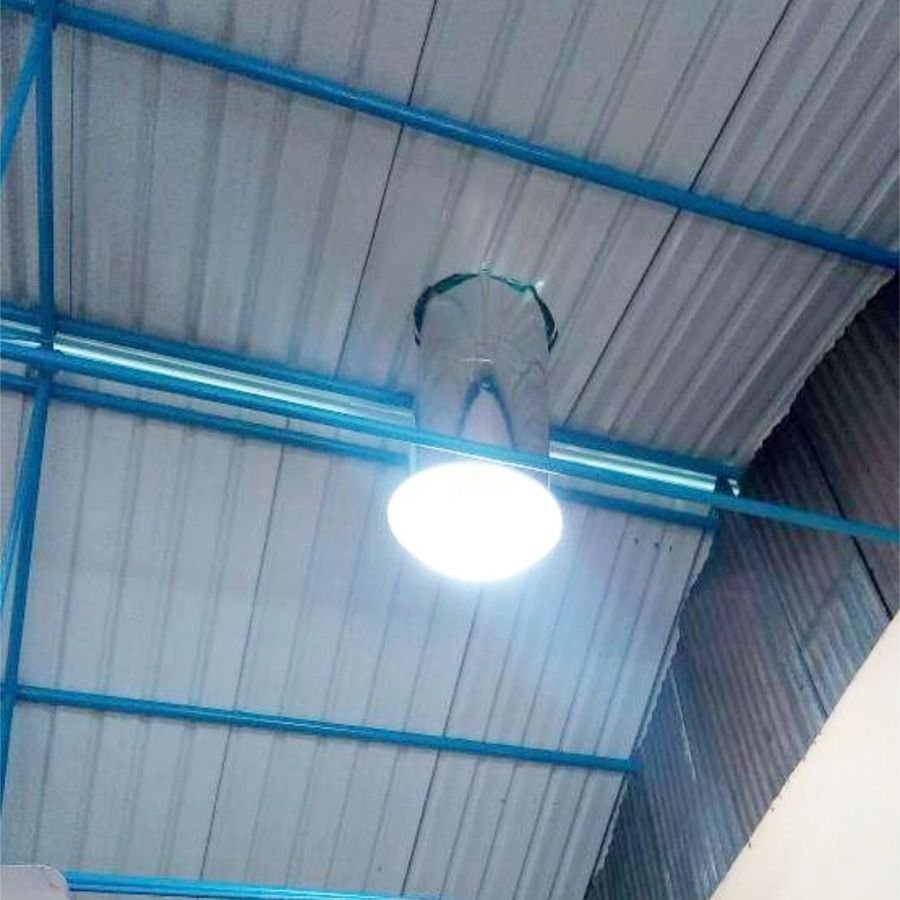

- SUNLIGHT PIPE™ works on a simple principle of how SUNRAYS react after falling on various surfaces while travelling.
- To explain more, Sunrays falling on transparent dome shape deflects to a specific angle, bends inward and again keeps travelling further in the aluminum reflector tube.
- Tube being cylindrical it keeps reflecting the sunrays downwards.
- At the end of tube small diamond shape surfaced dome scatters the sunrays to a specific and defined diameter on floor from a defined height.
- Height and diameter of scattering sun rays, depends upon Model of SUNLIGHT PIPE™.
How many variants available in SUNLIGHT PIPE™?
SUNLIGHT PIPE™ – 4 Models.
- (1) 300D (2) 400D (3) 600D (4) 800D
- All models are same for use either on RCC OTS or Metal sheet roof except HDPE roof flashing which is different in RCC applications and Metal sheet roof applications.
- Selection criteria are different for different models, ranging from 3.0 mtr. roof height to 12.0 mtr. roof height (RCC / Metal sheet roof)

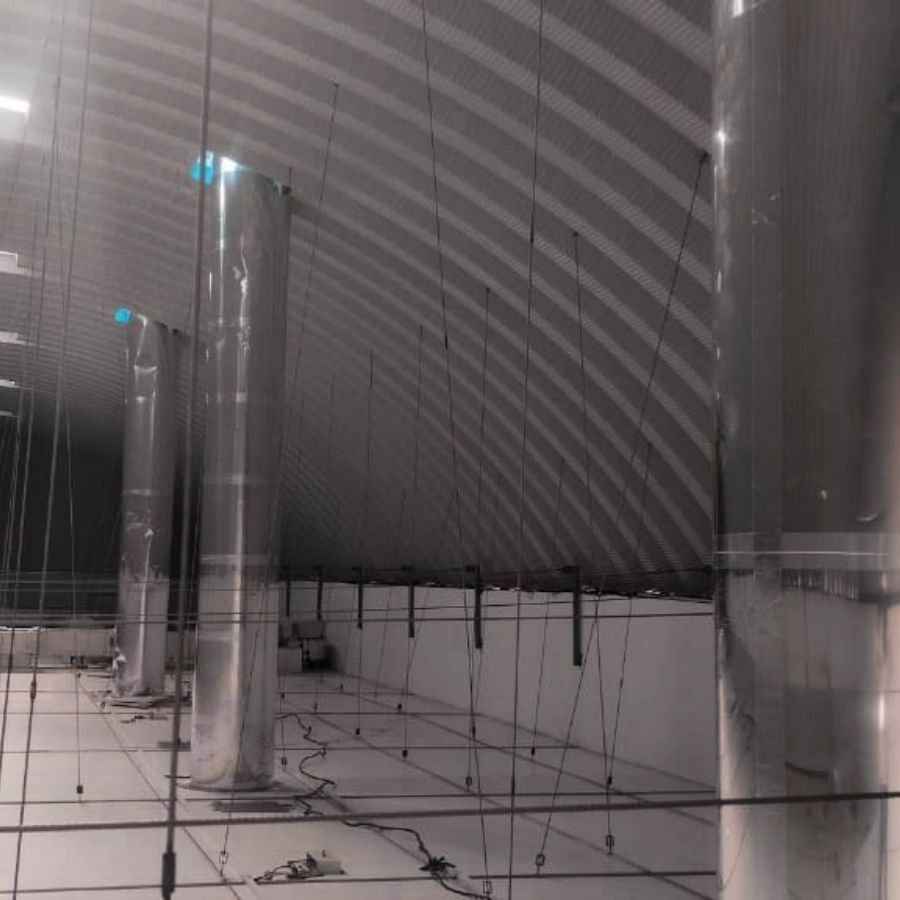

- These range has an aluminum reflector tube below the Sunrays collector dome and at the lower end of reflector tube a Sunrays diffuser dome is fixed with help of ABS “L” & “U” rings.
- These models normally give output of 250 -300 LUX below and this output is directly proportional to ambient LUX level of 95000.

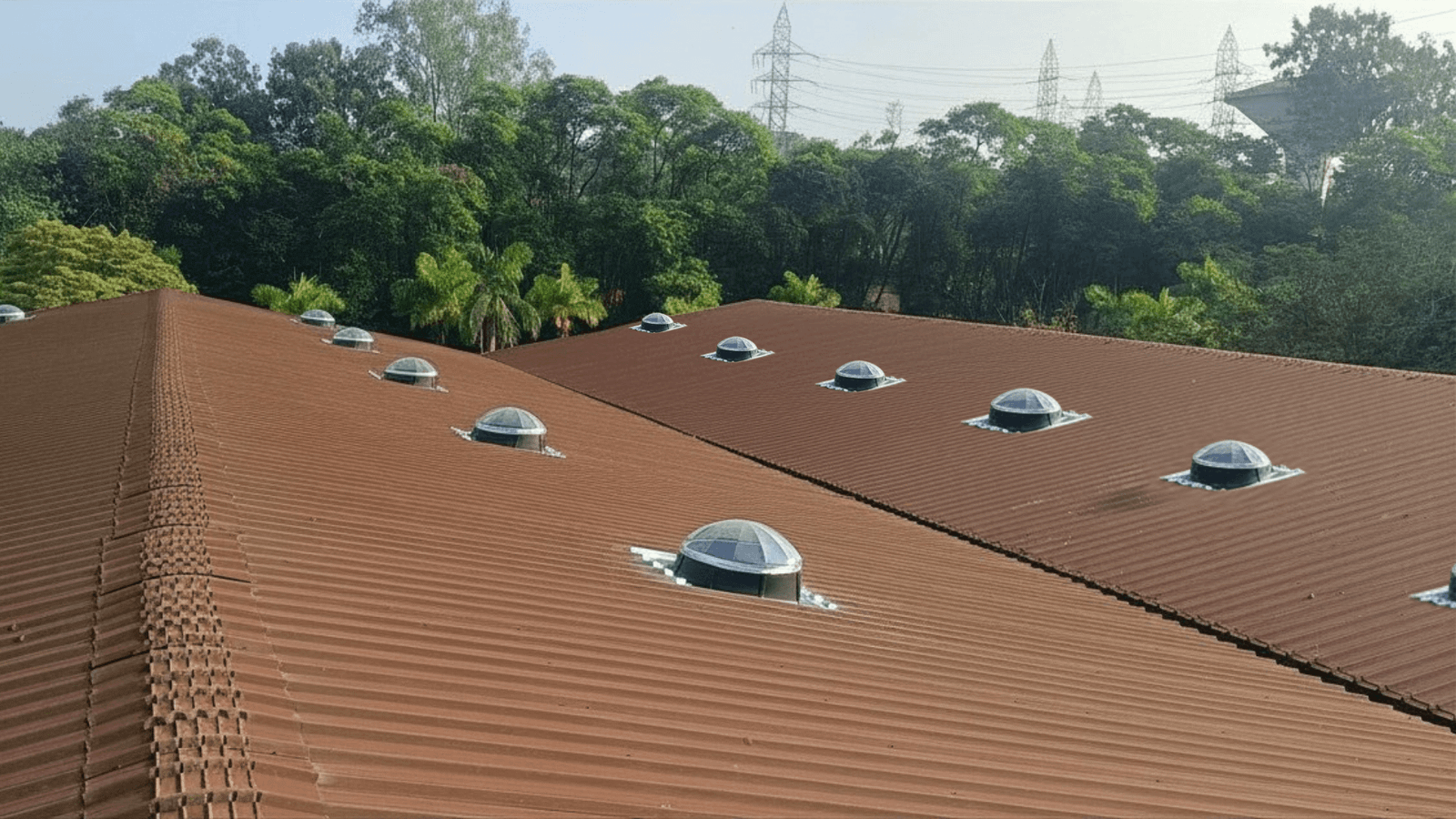

On what type of roofs SUNLIGHT PIPE™ can be installed?
- SUNLIGHT PIPE™ has many models as mentioned above.
- SUNLIGHT PIPE™ has two variants in all models. (a) Metal Roof Sheet (b) RCC OTS

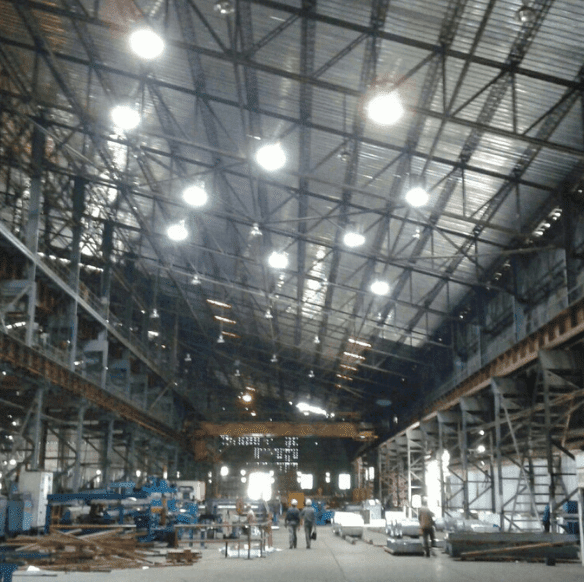

- These roofs can be of a small Workshop, Assembly line, MNCs production facility, Plant, Ware houses, Supply chain storages, Bungalows, Resorts, Farm houses, corporate offices OTS and many more.
Why should SUNLIGHT PIPE™ be selected among other manufacturer’s products?
- Deep researched sizes. Catering to wide range of roof heights.
- Much R & D done before final design of product.
- Ensured by design the much-worried problem like leak proof ness and dust entry restricting fittings for longer performing life.
- Ensured by design and self-testing of condensation water vapors outlet pockets in roof flashing.
- Best of Raw Materials selected, considering its end use and performing life.
- Best of consumables like silicon sealants, aluminum rivets and Butyl tapes used for installation.
- Self-tested on own roof.
Can SUNLIGHT PIPE™ be customized?
Yes, SUNLIGHT PIPE, all models can be customized for the portion of metal roof sheet cross section to fix accurately to customers’ existing metal roof sheet cross section.
What is lead time for this product or is this always available in stocks?
- Any model of RCC variant can be dispatched within 24 hours of order placed.
- Metal roof sheet variant can be dispatched within 7 days of receiving order and metal roof sheet cross section from client.
Free Consultation about this product is possible?
- Yes, online consultation / discussion about any clients’ requirement is must and therefor its free, before proceeding to place an order.
- We are available for FREE CONSULTATION during any working day between 9 a.m. to 6 p.m.
Essentials of Our Solutions
18 months ROI (Including IT benefits).
Reduction in Electrical energy bills up to 60%.
10 years of performing life gives additional benefits up to 8.5 years.
No leakage guaranteed saves in terms of rejection of Raw Material, Finished goods, Machine stops or wet slippery floors preventing accidents.
No replacement at every 3 to 5 years, Saving productive peoples’ time, energy and money.
Enhanced productivity through Sunlight by improving mind and body health of people working on floor. This can not be calculated in terms of money.
Must take a look at
| SUNLIGHT PIPE™ System and its SELECTION CRITERIA , Market Prices. | |||||
|---|---|---|---|---|---|
| Sr. | Model | Suitability | Opening area in roof through which sunrays pass through | LUX output at floor | Price in INR |
| 1 | 2.4 LT | Covers : Approx. 6.0mtr. x 6.0 mtr. on floor Suitable Roof height : 12 - 16 mtrs. Maximum distance between two lights 5.0 mtrs. | 15.50 sq.ft. | 300 - 400 | 21,700/- |
| 2 | 3.8 NLT | Covers : Approx. 8.0mtr. x 8.0 mtr. on floor Suitable Roof height : 16 - 19 mtrs. Maximum distance between two lights 5.0 mtrs. | 20.23 sq.ft. | 250 - 300 | 24,000/- |
| 3 | 3.8 LLT | Covers : Approx. 8.0mtr. x 8.0 mtr. on floor Suitable Roof height : 19 - 25 mtrs. Maximum distance between two lights 5.0 mtrs. | 27.55 sq.ft. | 250 - 300 | 26,500/- |
| NOTE: LUX output calculated at ambient,95000 LUX level | |||||
| NOTE : Standard Packet : 05 sets / Transportation : Extra / Packaging : Extra / GST : Extra Consumables of installation Butyl Tapes / plastic buttons /screws / silicon : Extra | |||||
Customization
Customisation in size , shape and sheet type is possible for minimum 100 pcs MOQs.
Always customised as per clients’ roof sheet cross section for best performance and leakage prevention.
Got Questions?
Where can SUNLIGHT PIPE™ 2.4 LT & 3.8 LT, be installed?
- SUNLIGHT PIPE™ 2.4 LT & 3.8 LT can be installed on any kind of roof.
- Metal roof sheets’ pitch Roof shape. Metal roof sheet with 4 / 5 /6 or 7 hi ribs.
- Even best suitable for Standing Seam roof also.
- This roof can be of any building like Manufacturing unit, Ware houses, Corporate Office, Hotels, Resorts.
Why we should choose SUNLIGHT PIPE™ 2.4 LT or 3.8 LT?
- Before selection of any product from any manufacturer,
One must consider the pain points like
- Whether the product design is capable of preventing water seepage?
- Material used to produce the product is all weather and has excellent outdoor life or not?
- Performing life is double than ROI or not?
- SUNLIGHT PIPE™ 2.4 LT exhibits and fulfill the criteria of selection of any product.

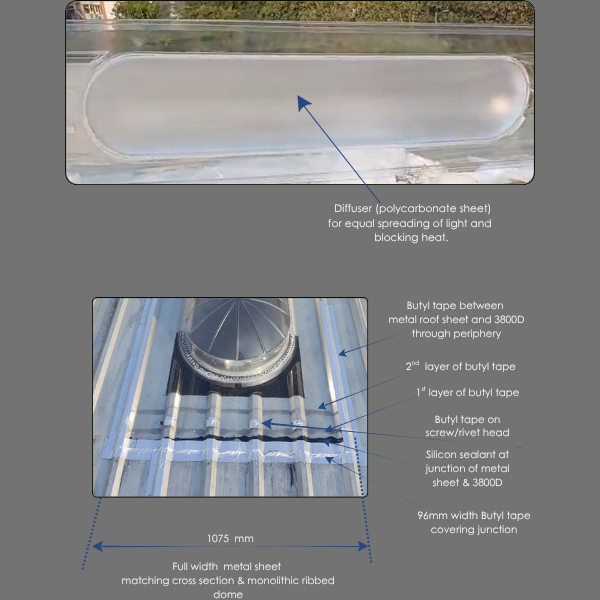

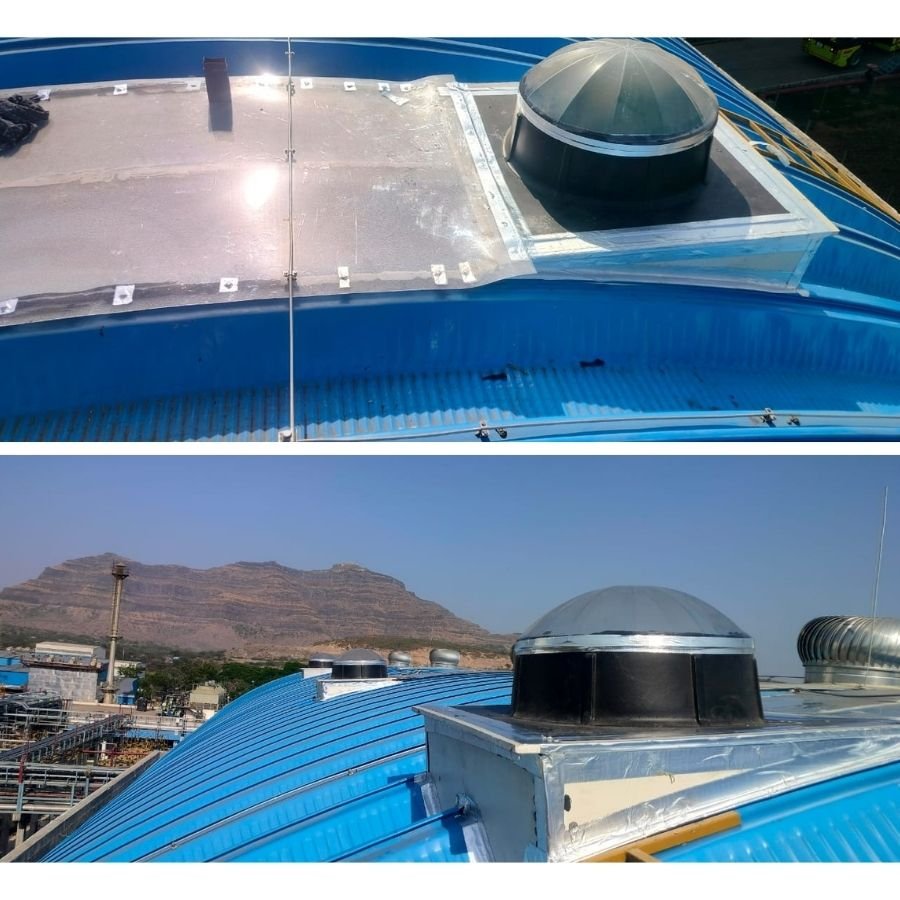

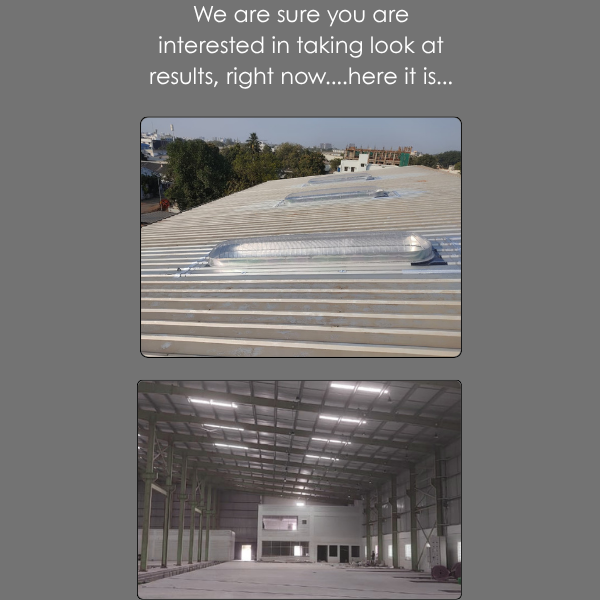

- Designed and produced monolithic / one piece / incorporating dome & metal roof sheet profile as one product to fix anywhere on roof without jugglery.
- Peripheral reflector allows sunlight from early morning to late evening transferring max. sunrays through the diffuser.
- Being monolithic no dust can enter from weather affecting its performance in long run.
- Being sealed diffuser, no dust can either enter from within below area as well.
- Branded thermoformable polycarbonate sheets like LEXAN & ULTRALITE are used to produce the product.
- Branded silicon sealants and butyl tapes from industry leaders like Dowsil and Pondfix are used to seal the joineries with metal roof sheet that too triple layer seal proofing.
Assuring no leakage at all.
What is lead time for this product or is this always available in stocks?
- No, this product is never in stocks
- Because this product is produced in monolithic fashion meaning thereby Sunrays collector dome and metal roof sheet cross section and peripheral reflector area, all is monolithic therefore upon receiving confirmed order and cross sectional details from client production can be taken on hands.
- Lead time depends up on quantity required by client.
What are the models available and what is the application criteria of SUNLIGHT PIPE™ 2.4 LT?

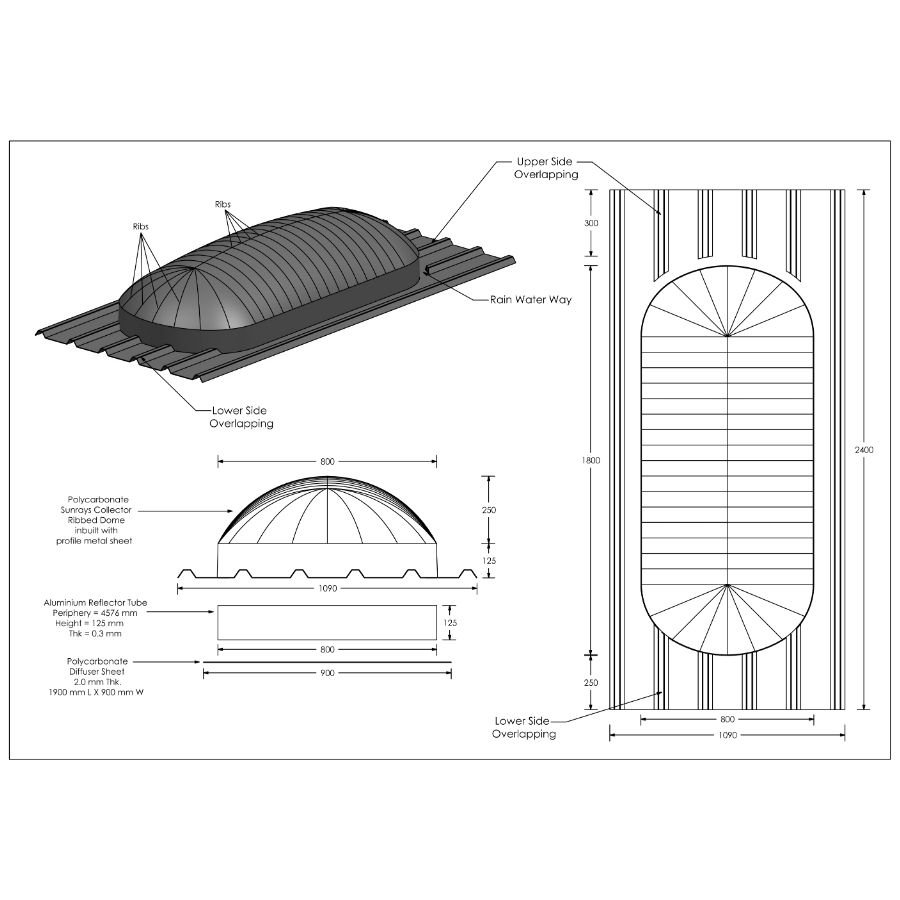

SUNLIGHT PIPE™ 2.4 LT
- This model is suitable for more than 12.0 mtr. to 16.0 mtr. roof height.
- Selection depends on the usage of below area i.e. what LUX level the client wants based on activity below.

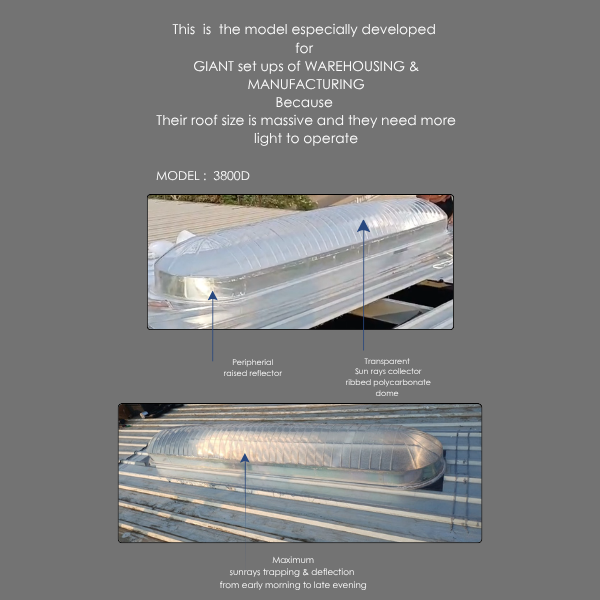

- This model have a long oval shape Sunrays collector polycarbonate dome having monolithic construction incorporating metal roof sheet corrugation matching at the bottom.
- Aluminum reflector is 120mm ht. and at the peripheral bottom of the Sunrays collector long tube type dome.
- Sunrays diffuser dome is a flat polycarbonate sheet with very small diamond type embossing on one side and plain on other side to diffuse the light evenly.
- These models normally give output of 300 – 400 LUX below and this output is directly proportional to ambient LUX level of 95000.
How to place order of SUNLIGHT PIPE™ 2.4 LT ?
- You are suggested to visit our contact us page on this website and fill up the form. We will get back to you to discuss your requirement and guide you on how to place an order.
- You can chat with our chat bot and you will get much information including pricing in it.
Can this be customized?
Yes, SUNLIGHT PIPE™ 2.4 LT model can be customized for the portion of metal roof sheet cross section to fix accurately to customers’ existing metal roof sheet cross section.
Free Consultation about this product is possible?
- Yes, online consultation / discussion about any clients’ requirement is must and therefor its free, before proceeding to place an order.
- We are available for FREE CONSULTATION during any working day between 9 a.m. to 6 p.m.
What are the models available and what is the application criteria of SUNLIGHT PIPE™ 3.8 LT?
SUNLIGHT PIPE™ 3.8 LT
- This model is suitable for 16.0 mtr. – 25.0 mtr. roof height.
- This model have a long oval shape Sunrays collector polycarbonate dome having monolithic construction incorporating metal roof sheet corrugation matching at the bottom.
- Aluminum reflector is 120mm ht. and at the peripheral bottom of the Sunrays collector long tube type dome.
- Sunrays diffuser dome is a flat polycarbonate sheet with very small diamond type embossing on one side and plain on other side to diffuse the light evenly.
- This model normally give output of 300 – 400 LUX below and this output is directly proportional to ambient LUX level of 95000.
